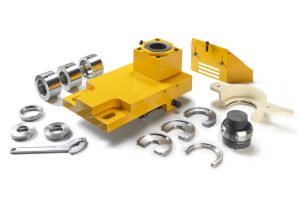

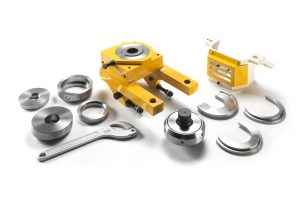

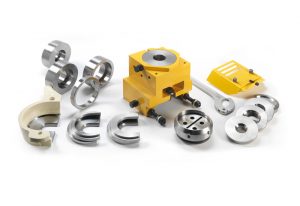

Oversize punching unit for diameters up to 100 mm
GEKA’s oversize punching unit for diameters up to 100 mm is an ironworker tool that allows operators to cut a wide range of hole punch diameters and geometric figures on flat surfaces. The punch must have the desired shape and figure, which should circumscribe to a small diameter hole punch diameter of up to 100 mm. The die must have the same shape with proportional set to the thickness of the material.
CAUTION: Never punch a hole punch diameter smaller than the material thickness. It is very important to apply the correct gap between punch and die.
The following table provides the maximum hole punch diameters thickness that can be punched using this tool.
| Machine | ø x max thickness | ø x max thickness |
|---|---|---|
| Micro 36 | Ø 17×16 | Ø 38×8 |
| Minicrop 45 | Ø 18×18 | Ø 100×4 |
| Multicrop | Ø 18×18 | Ø 100×4 |
| Bendicrop 50 | Ø 19×19 | Ø 100×4 |
| Bendicrop 85 | Ø 24×24 | Ø 100×6 |
| Hydracrop 55 | Ø20×20 | Ø 100×4 |
| Hydracrop 80 | Ø 24×24 | Ø 100×6 |
| Hydracrop 110 | Ø 29×29 | Ø 100×8 |
| Hydracrop 165 | Ø 34×34 | Ø 100×12 |
| Hydracrop 220 | Ø 40×40 | Ø 100×16 |
| L50 | Ø 20 x 20 | Ø 40×9 |
| L50 | Ø 20 x 20 | Ø 50×7 |
| Puma 55 | Ø 20 x 20 | Ø 100×4 |
| Puma 80 | Ø 24 x 24 | Ø 100×6 |
| Puma 110 | Ø 29 x 29 | Ø 100×8 |
| Puma 165 | Ø 34x 34 | Ø 100 x12 |
| Puma 220 | Ø 40 x 40 | Ø 100×16 |
If you would like to purchase a custom tool for punching in small diameters or any custom parts for your Geka ironworker, please contact GEKA. Our technical service is available to help you and will be able to design a tailor-made solution. You can send us a sketch with the idea that you have in mind, including the shape and size for the part, and our technical service will evaluate the feasibility of the design. All of our custom tools can be adjusted to the standard machine easily and quickly.
