Rectangular notching equipment

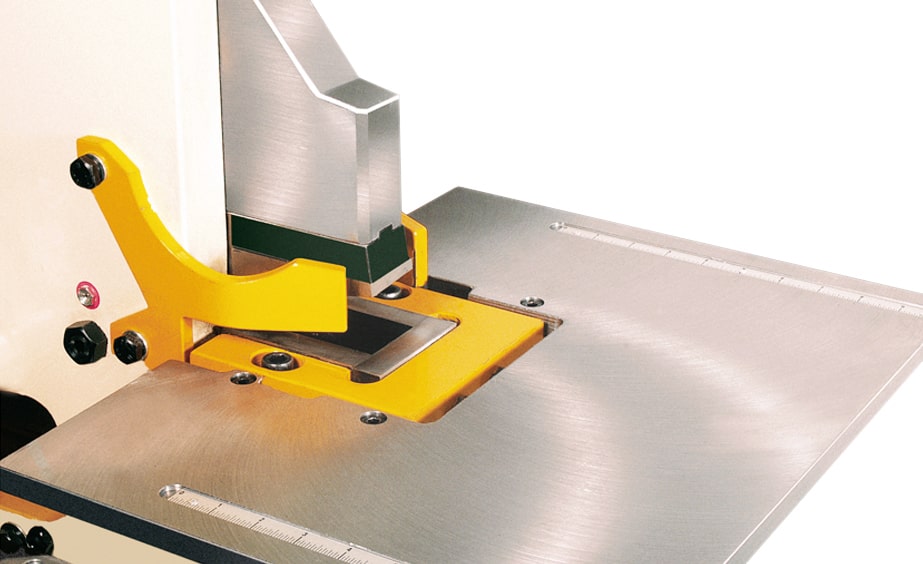

GEKA’s rectangular notching equipment, a notching tool for the notching stations included in GEKA machinery. The rectangular notching equipment allows users of our hydraulic ironworking machines to obtain rectangular cuts on the outer perimeter of flat bars or sheet metal.

The rectangular notching equipment performs open rectangular notching operations, which means that one side of the rectangle is at the border of the profile, the same profile border that you place in the inner part of the notching tool will be the one to be open to the outside.

You can also make use of the wide range of notching tools available from GEKA. These allow operators of GEKA machinery to notch in several standard and special shapes. Customers can also make their own tailor-made tools through our technical support service. All of them can be adjusted to the standard machine easily and quickly.

If you have any unsolved doubts that we can help you with regarding this notching tool or if need technical support or advice, please contact our Geka experts to help you with this equipment.

Rectangular notching equipment specifications by machine

The rectangular cut notching equipment is available for the Geka ironworking machines in the Bendicrop, Multicrop, Minicrop and Hydracrop series. In the list below you may find the maximum capacity of the rectangular equipment for each model.

MachineWidthLengthMaterial Thickness
Minicrop40507
Multicrop40507
Bendicrop429010
Hydracrop 55429010
Hydracrop 80529012
Hydracrop 110529013
Hydracrop 1655811016
Hydracrop 2205811016

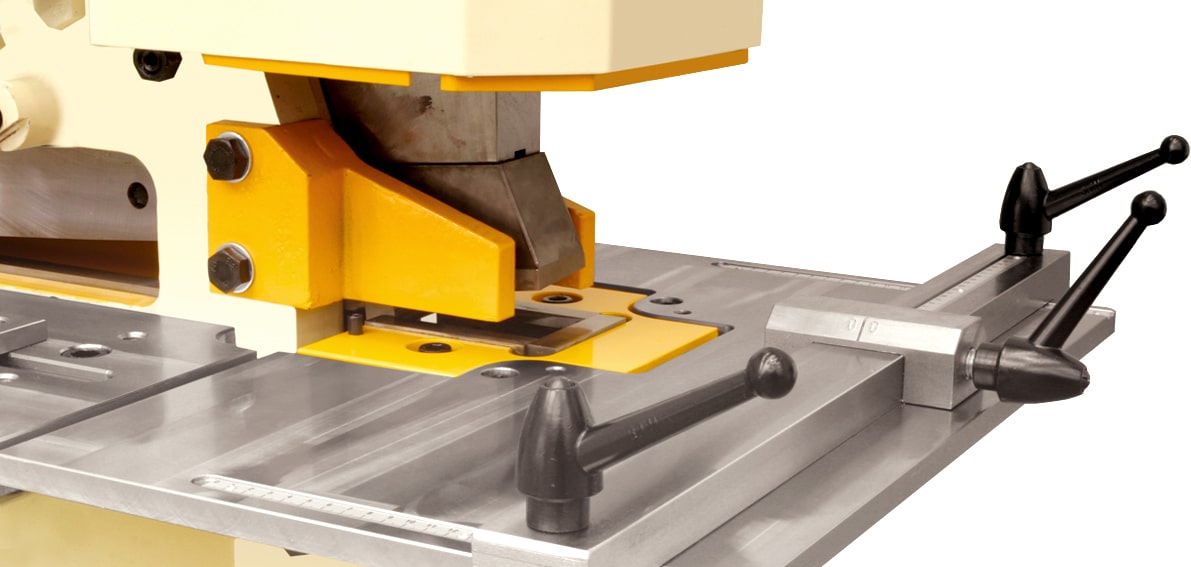

Hydracrop Rectangular cut notching equipment

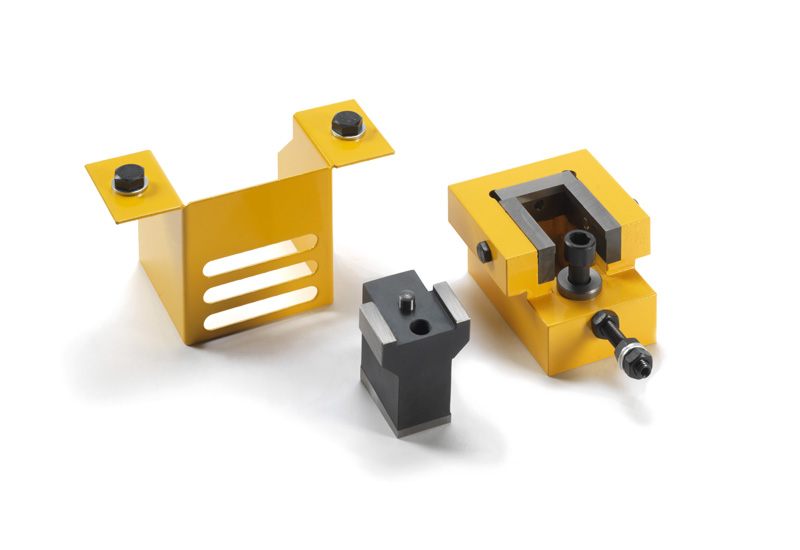

Microcrop Rectangular cut notching equipment

For any GEKA machinery notching or punching tool, such as the rectangular notching equipment, you can rest assured that GEKA’s 100 years of experience and commitment to high quality standards result in durable machines and highly reliable industrial machine tools, capable of performing any industrial metalworking task.
